Paddle Mixer machine:

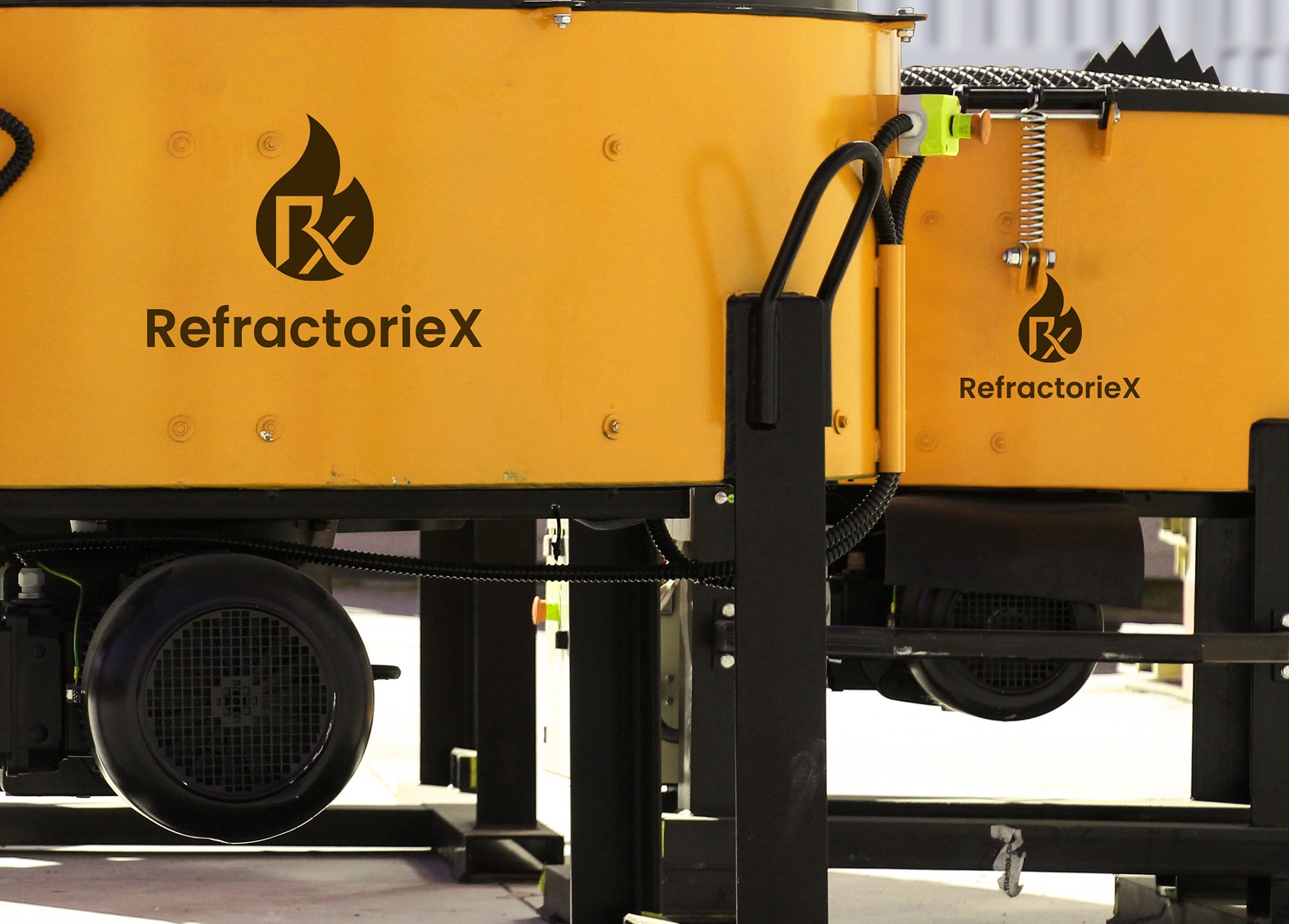

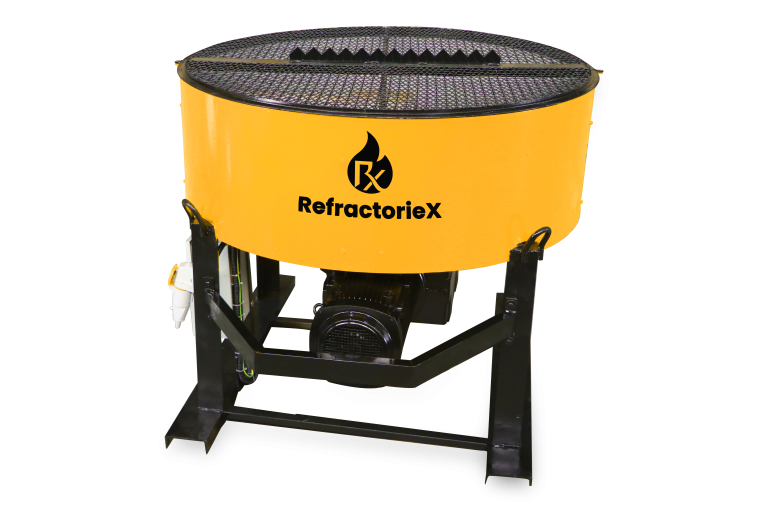

This machine is specifically designed to mix wet, moist, and dry refractory mass. Its main advantage lies in its ability to mix materials quickly and produce a high-quality final mixture. The mixer is primarily used in the production of refractory concrete, which is used in the construction of all types of furnaces, boilers, tundish, ladle, chimneys, and other industrial applications in metallurgical, steelmaking, and other refractory-dependent plants.
Performance of Mixers
Mixers work based on the principle of rotating mixing arms at high speed inside a fixed tank. The aim is to mix the contents of the tank without any sticking to the tank’s body or bottom. This is why several arms (paddles) work simultaneously to perform the mixing action. The design of the mixing arms and paddles is unique and adjustable under license. The mixing blade is powered by an electric gear motor that needs little maintenance.
Electrical Panel

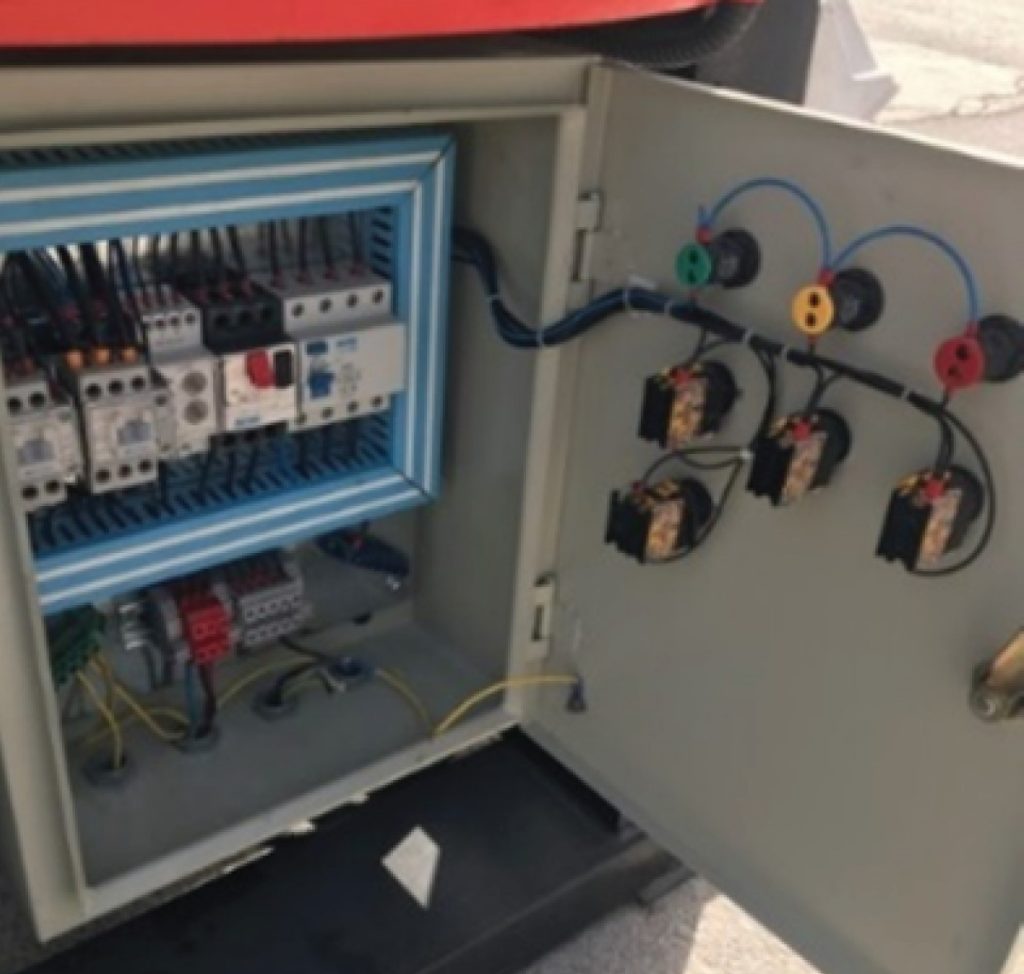

In order to comply with safety precautions, this mixer was constructed using a contactor switchboard that includes overload and overvoltage protection, as well as an emergency switch.
Power Transfer

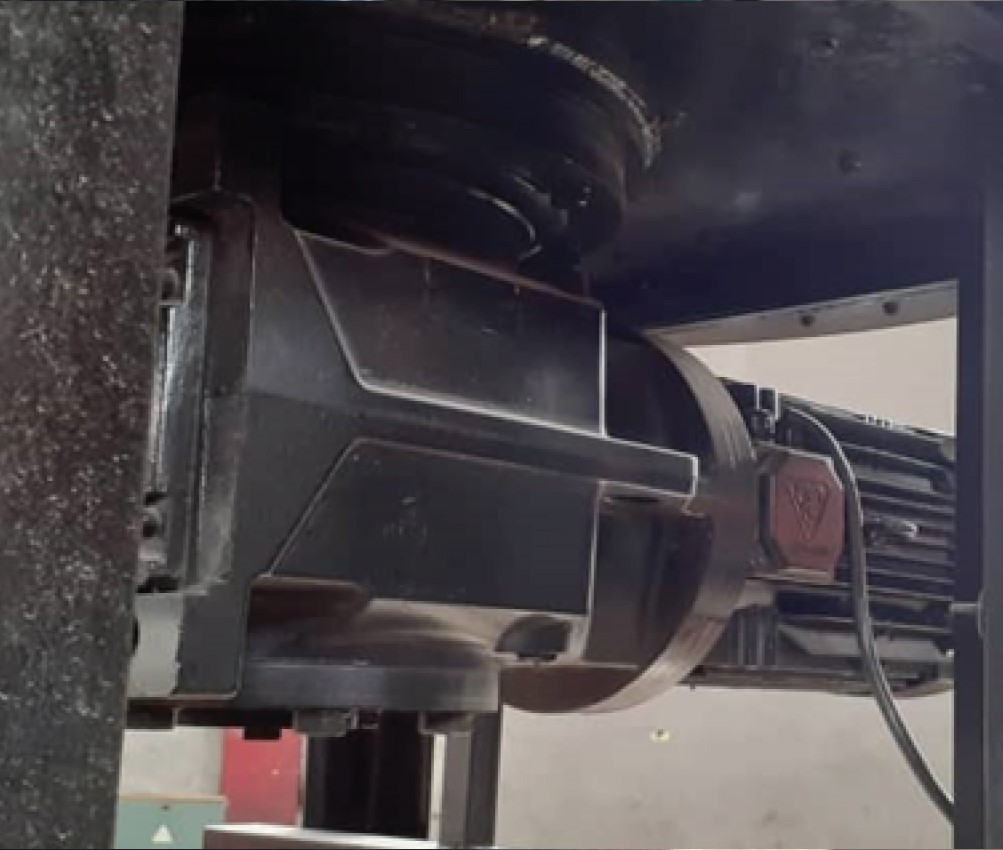

This type of mixer is distinguished by its use of a helical electro-gearbox with a German rolling design. This creates a highly efficient and powerful output, allowing it to mix masses with minimum water and density while maintaining high adhesion. The electric gearbox has a service factor of 1.6.
Door Design
The mixer has a unique design that includes an exit door made of a special material to allow for quick and easy discharge. Additionally, to ensure the best quality mixing of refractory mass, the paddles of the stirrer can rotate in both clockwise and counterclockwise directions.
Industrial Refractory Anchors
Refractory Anchors

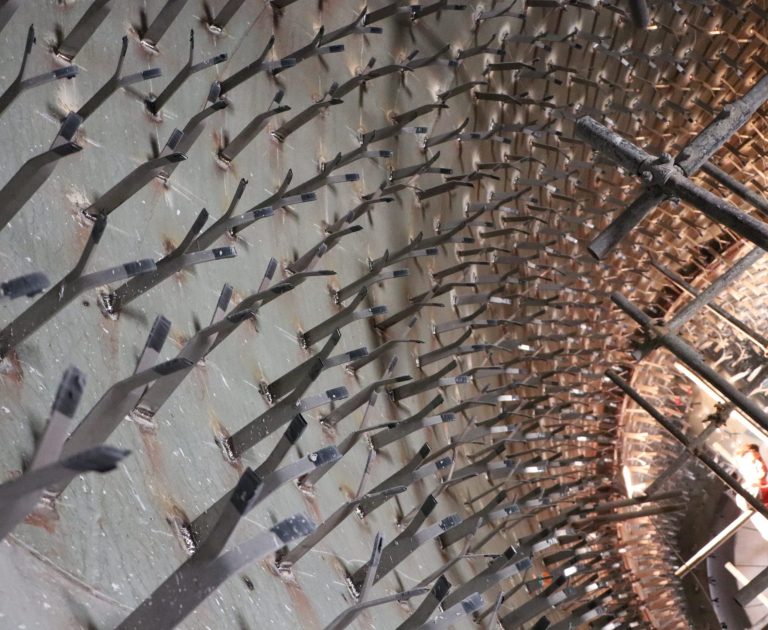

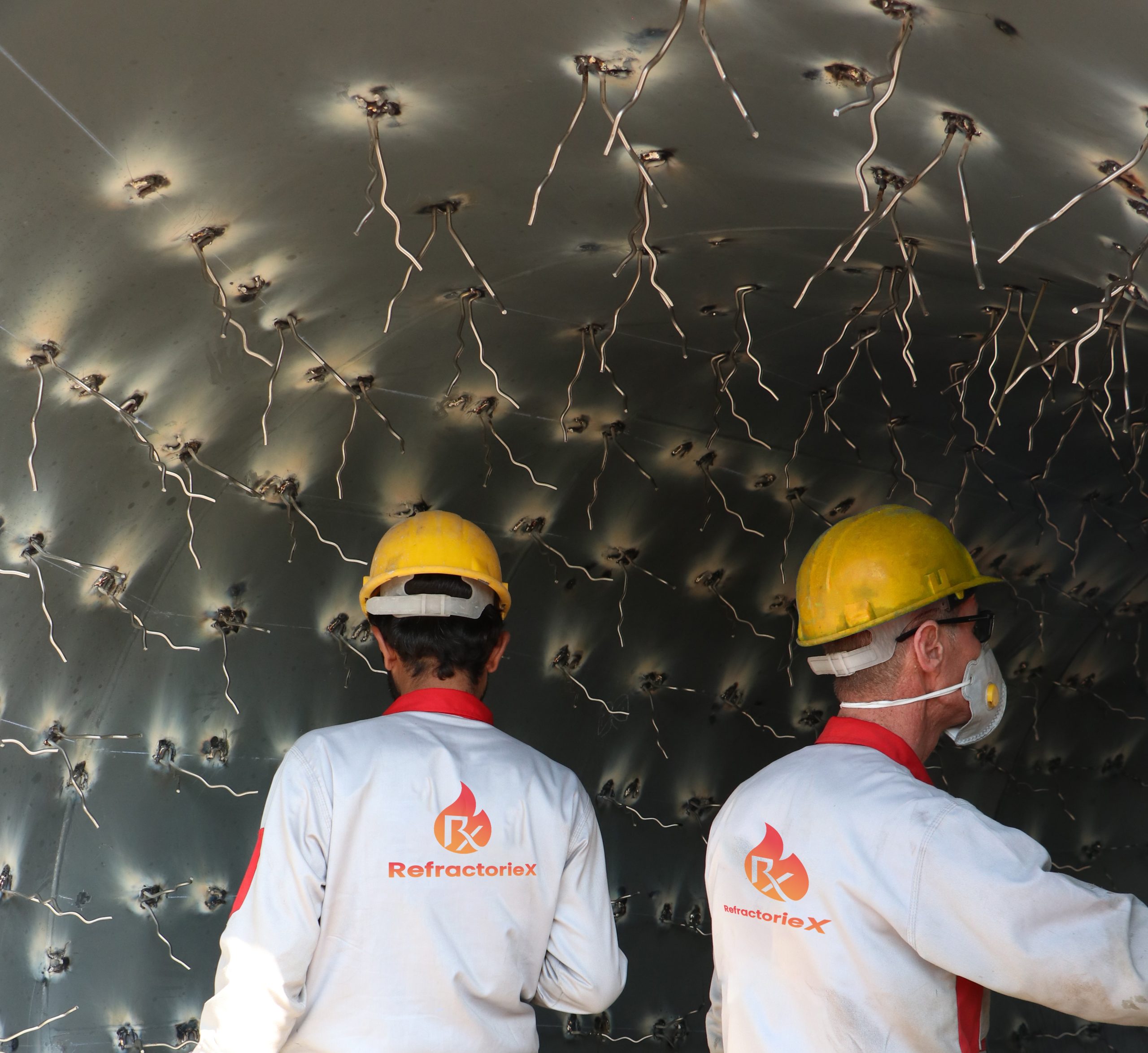

RefractorieX has been designing and manufacturing refractory anchors for years, offering an extensive range of high-quality standard and custom-made refractory anchor products for a variety of linings and lining depths. Our experience has led to the development of a unique range of anchoring systems that offer our clients a flexible, reliable, and cost-effective solution to secure refractory linings. We offer full in-house design and manufacturing for fast turnarounds on custom anchor designs, and we hold a comprehensive range of common anchor shapes and sizes in stock.
Anchor Types Include
Y & V Anchors
Welded & Twisted Anchors
Split Tyne, Stud Welded, and Rotalock Anchors
Christmas Tree and Strap Anchors
Ceramic Anchor Brick Clips
Shelf & PV Anchors
Shelf Brackets & Fabricated Parts
Ceramic Fibre Fixings
Anchor type is selected based on lining design, shell orientation, and the working temperature of the equipment – our team can recommend a type during the quotation stage if you’re unsure which fits your application.
Material Selection
Alloys behave differently in different environments and temperatures, so material choice is critical for refractory anchors. RefractorieX’s experience can assist with determining the most appropriate materials for each individual application. We supply anchors in a variety of material options, including standard heat-resisting alloys such as 310, 304, and 253, and can also supply specialist alloys such as 601 and DS in a variety of diameters. For special requests, please contact us for a custom quotation and lead time.
